Beyond Yellowing and Orange Peel: How ELOV Paint Protection Film Factory Achieves a Durability Guarantee of Over 5 Years
For paint protection film (PPF), time is the most rigorous test. Many products look brand new initially, but fade and lose their luster after a few years due to the two persistent problems of yellowing and orange peel, leading to customer complaints, warranty claims, and damage to brand reputation.
As a professional manufacturer, we understand the root causes of these two problems and address them fundamentally. This article will explain, from a technical perspective, how ELOV paint protection film factory achieves its superior durability guarantee of over 5 years through materials science, structural design, and process control.
Root Causes: Where Does Yellowing and Orange Peel Come From?
To solve the problem, we must first understand its causes.
– The chemical nature of yellowing:
Primarily, it is caused by the photo-oxidative degradation of polymer materials (TPU substrate, coating) under long-term ultraviolet (UV) radiation. This leads to polymer chain breakage, generating chromophores (such as carbonyl groups), thus resulting in a yellow appearance. Furthermore, certain additives (such as antioxidants) in low-quality adhesive layers or coatings are inherently unstable and can migrate, leading to yellowing.
– The physical causes of orange peel:
Not all orange peel textures originate from PPF itself. The structural orange peel we refer to mainly refers to the irreversible deformation of the film’s surface microstructure after thermal expansion and contraction and long-term stress relaxation, resulting in uneven light scattering and forming a texture similar to orange peel. Uneven molecular weight distribution and improper internal stress control in inferior TPU substrates are the main culprits.
ELOV PPF factory’s solution: A three-layer active defense system
We don’t just delay the problem; we build an active defense system from the inside out.
First layer of defense: Top-grade aliphatic TPU substrate
The substrate is the “skeleton” of PPF. We have abandoned aromatic TPU, which is prone to yellowing, and exclusively use top-grade aliphatic TPU. Its chemical structure does not contain groups such as benzene rings that easily absorb ultraviolet rays, giving it inherently strong UV resistance. Furthermore, through precise polymerization processes, we control the molecular weight and distribution of the coating, ensuring excellent dimensional stability and stress relaxation recovery rate, fundamentally eliminating the orange peel effect caused by substrate creep.
Second Layer of Defense: A Dual-Effect Core Coating
This is the heart of our technology. We combine the “UV protection barrier” with the “surface functional layer.”
- Nanoscale Permanent UV Absorber: We have selected and customized UV absorbers that are covalently bonded to the polymer chains. Like an “energy converter,” it transforms absorbed harmful UV radiation into harmless heat energy, and it is not consumed or migrated upon exposure, providing lifelong protection.
- Crosslink Density Optimization Technology: By precisely controlling the crosslink network density of the coating, we have found the golden balance between flexibility (anti-orange peel, conformability) and rigidity (scratch resistance, solvent resistance). An overly loose coating network is prone to aging and deformation, while an overly dense network is prone to brittleness. Our optimized formulation ensures that the coating maintains morphological stability during long-term use.
Third Layer of Defense: Precision Manufacturing and Rigorous Testing Excellent formulations cannot exist without precision manufacturing.

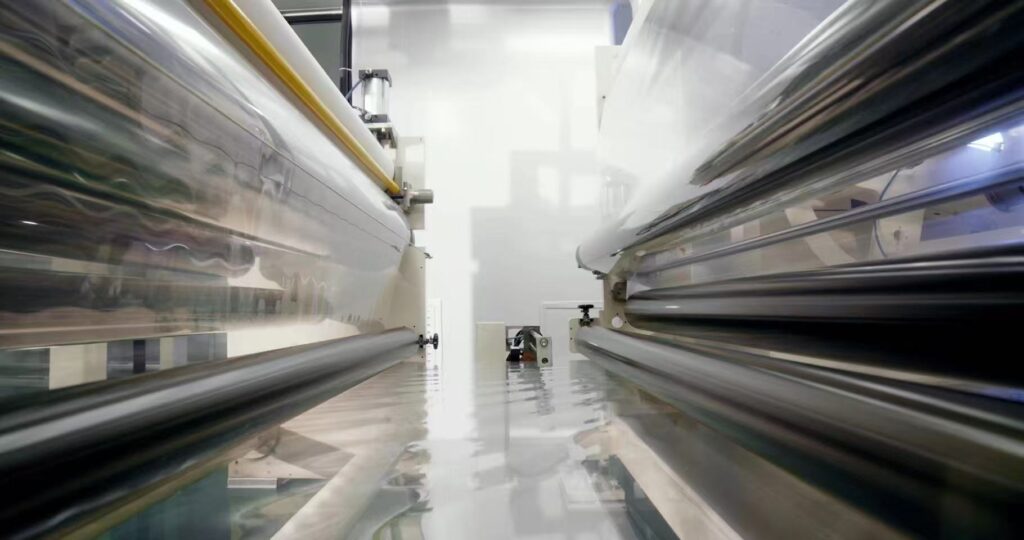

– Fully Enclosed Cleanroom Coating Line: Coating and curing are completed in a Class 100 cleanroom environment, eliminating the entry of dust particles that can cause orange peel effects.
– Intelligent Temperature and Humidity Controlled Curing: Ensures the coating cross-links and forms in the most uniform and stable manner, eliminating internal stress.
– Accelerated Aging Database: We possess a vast aging test database based on standards such as ASTM G155 and ISO 4892. Every batch of material must undergo more than 3000 hours of accelerated QUV testing (equivalent to more than 5 years of rigorous natural exposure), and its yellowing index (Δb) and gloss retention must meet our internal superior standards (typically Δb < 1.5) before production.
Data Verification: Promises Backed by Empirical Evidence
| Test Project | Test standards/conditions | Industry average level(Simulated 3 years later) | ELOV Standard(Simulated in 5 years) | ELOV measured data |
| Anti-yellowing properties | QUV-A, 3000 hours | Δb* > 3.0 | Δb* < 1.5 | Δb ≈ 1.2* |
| Gloss retention | 60° gloss meter, same before and after comparison as above. | ≤ 80% | ≥ 90% | ≥ 93% |
| Tensile deformation | Shrinkage after 500 hours of heat aging at 80°C | > 1.5% | < 0.8% | < 0.5% |
(Data is based on laboratory accelerated aging tests. Actual results may vary depending on environment and care, but the correlation has been verified.)
The Business Value You Receive: Peace of Mind Beyond Warranty
Choosing ELOV means more than just a product; it’s a business solution that reduces risk and increases profits.
- Significantly Reduce Warranty Claim Rates: Eliminating major failure modes at their source saves you substantial after-sales costs and management time.
- Build a Premium Brand Reputation: Durable, like-new protection is the best source of word-of-mouth from your end customers, directly solidifying your brand’s premium positioning.
- Simplify Sales Decisions: When faced with customer doubts about durability, “5+ Year Anti-Yellowing and Anti-Orange Peel Protection” is the most powerful sales pitch, easily ending price comparisons.
- Suitable for the Most Demanding Markets: Whether in desert regions with intense UV radiation, in hot and humid coastal areas, or for customers who are extremely concerned about the resale value of classic cars and supercars, ELOV is your most reliable choice.
At ELOV, we firmly believe that true durability warranty should not just be a marketing slogan, but an engineering philosophy that delves into the molecular structure of materials and permeates every stage of production. We invest heavily in research and development and production control so that you and your customers can still appreciate the original brilliance of the car body five years or even longer.
Let time prove your choice.
We welcome you to request a free sample of the ELOV PPF(https://www.elovppf.com/) for comparison testing with your existing products. Contact us now!You will have more possibilities!
